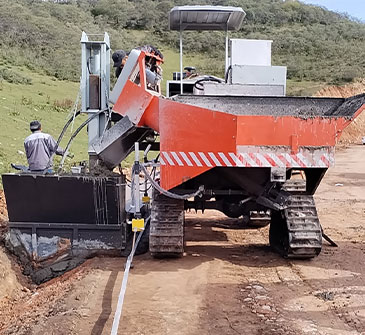

Concrete Curb Slipform Machine
Paving Speed
1–10 m/min
Maximum Curb Size
Height ≤1100 mm
Concrete curb slipform machines enable continuous, single-pass paving of curbs, gutters and barriers with high efficiency and precision. They boost speed and cut labor vs. traditional methods, widely used in highways, municipal roads, airports, parking lots and drainage projects.
Get a Quote
Product Introduction

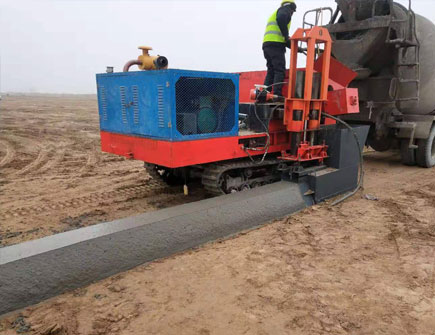

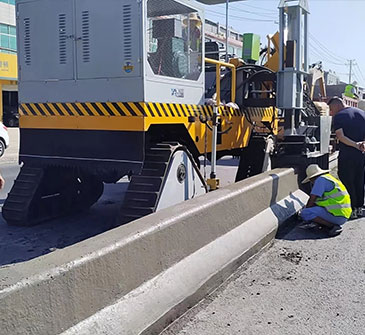

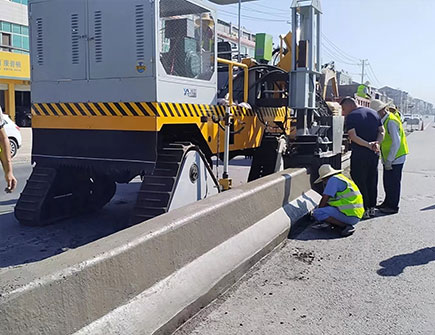

Concrete curb slipform machine is professional road construction equipment used to continuously extrude and form concrete curbs, gutters, and drainage channels. It uses dry-mix concrete and a high-frequency vibration system to ensure dense structure and smooth surface finish. With automatic steering and leveling control, the machine maintains stable paving direction and consistent curb profiles, reducing labor by up to 70% while improving construction efficiency. Different molds can be customized to produce various curb shapes and sizes for different projects.
Get a Quote

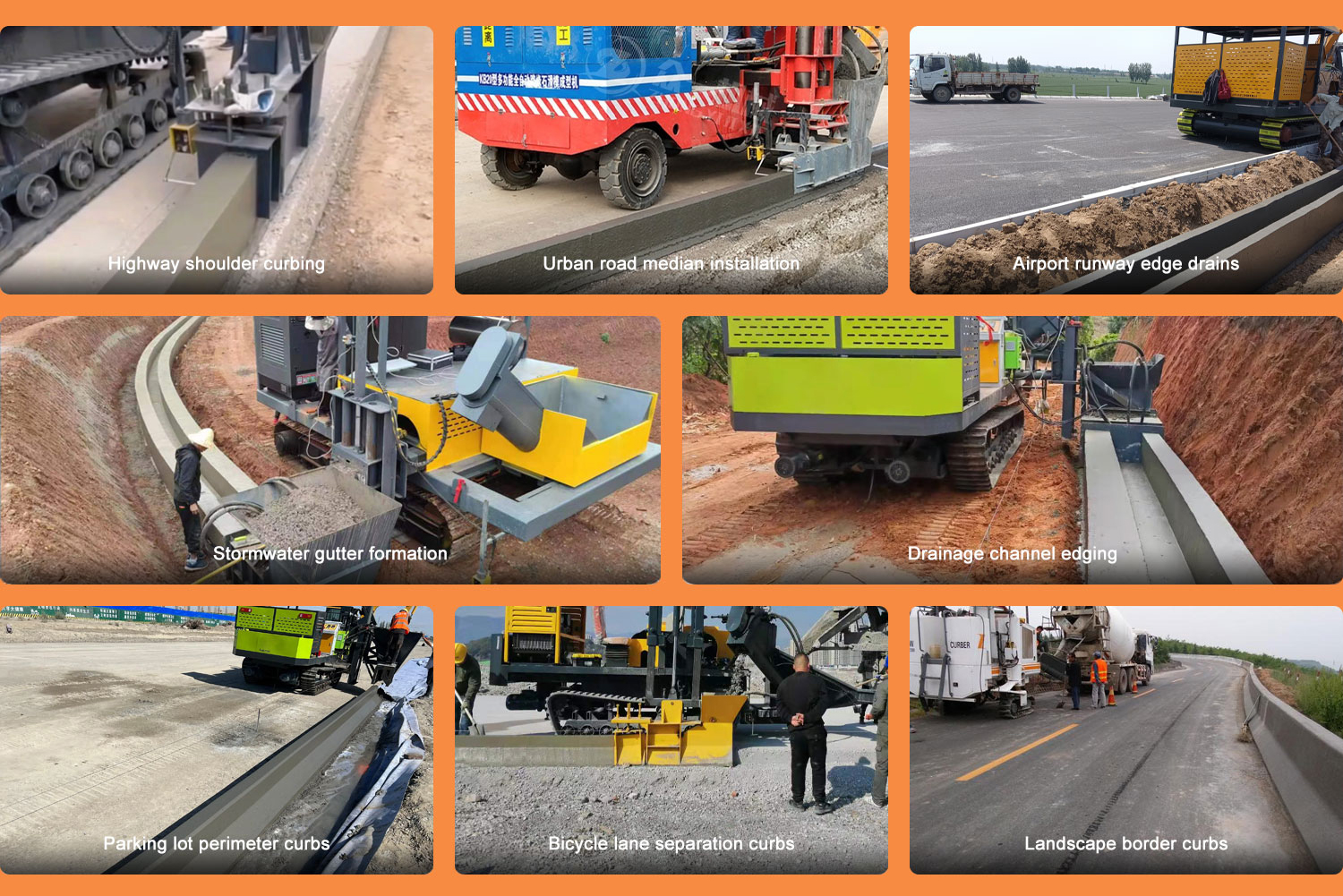

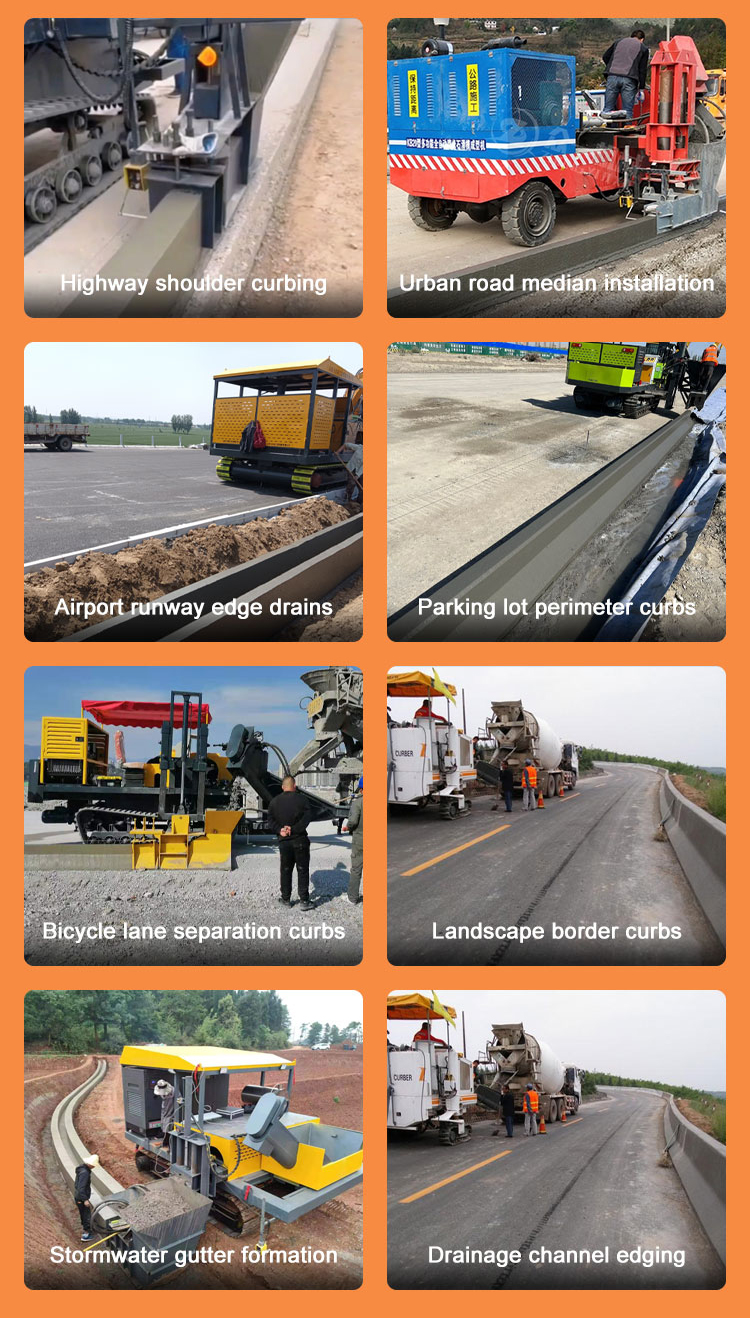

Application Areas
Concrete curb slipform machines are widely used in road construction, municipal infrastructure and drainage engineering.
Product Features
High-Speed Paving
Paving speed can reach 1–10 m/min, greatly improving construction efficiency.
Single-Pass Operation
Extrusion, vibration, compaction, and forming are completed in one continuous process.
70% Labor Reduction
Reduces labor requirements by up to 70% compared with traditional construction methods.
Seamless Monolithic Structure
Slipform technology creates a continuous, joint-free curb with higher durability.
Product Parameters
| Modelo | YG-30 | YG-20 | YG-KB6 |

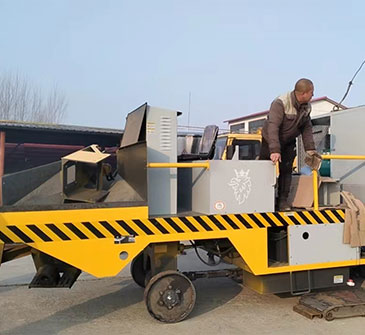

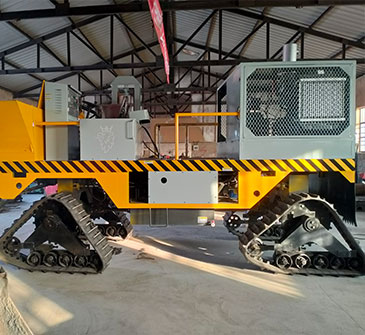

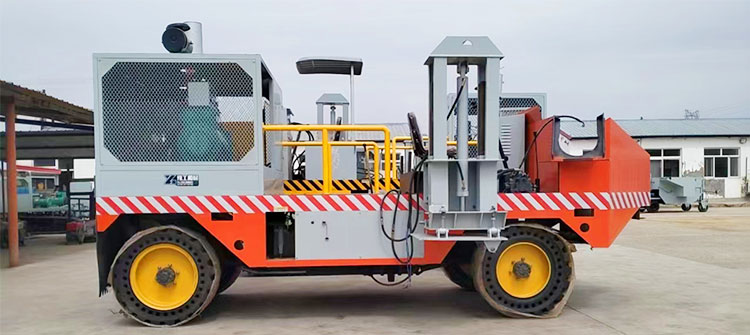

| Machine Type | Crawler Portable | Wheel Portable | Hand Push |
| Engine Power | 65 kW Diesel Engine | 65 kW Turbo Diesel Engine | 12 kW Diesel Engine |
| Maximum Curb Height | ≤1100 mm | ≤600 mm | ≤500 mm |
| Maximum Curb Width | ≤2000 mm | ≤2000 mm | ≤900 mm |
| Paving Speed | 1–10 m/min | 1–7 m/min | 1–6 m/min |
| Hopper Capacity | 1 m³ | 1 m³ | 0.4 m³ |
| Minimum Turning Radius | 6800 mm | 6800 mm | / |
| Forming Method | High Frequency Vibration | High Frequency Vibration | High Frequency Vibration |
| Machine Dimensions | 5200 × 2400 × 2800 mm | 5200 × 2400 × 2800 mm | 3300 × 2100 × 1200 mm |
| Machine Weight | 7000 kg | 6000 kg | 1800 kg |
Still not finding what you're looking for?
Contact our consultants for more available products.
Contact Us

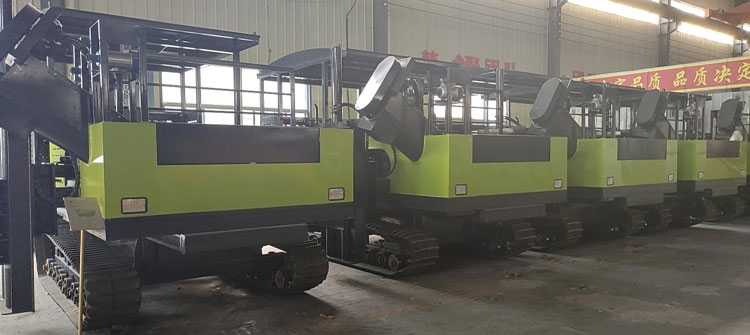

Yugong Factory Display
Henan Yugong Machinery Co., Ltd. is a professional manufacturer specializing in construction machinery and road construction equipment. The company integrates research, development, production and international sales.
The factory covers an area of 8,000 square meters and has a professional engineering team and advanced manufacturing equipment. With more than ten years of industry experience, Yugong Machinery has exported products to many countries and regions around the world.
All machines undergo strict quality inspection before delivery to ensure stable performance and reliable operation. We also provide professional technical guidance and after-sales service to support customers in completing their construction projects efficiently.
